ACEY-LWGZ-6000W is a type of computer numberical controlled laser welder to do automatic or semi-automatic butt welding, sealing welding, spot welding, overlap welding, and realize the welding of complex plane straight lines, arcs and arbitrary trajectories.
Brand :
ACEYItem No. :
ACEY-LWGZ-6000WCustomization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description

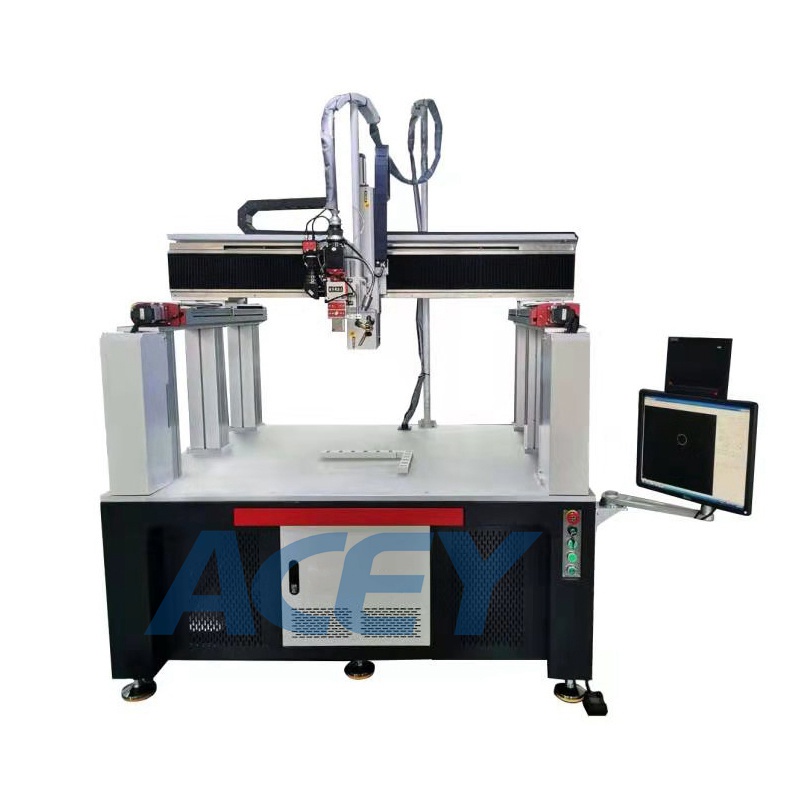

ACEY-LWGZ-6000W continuous galvanometer fiber laser welding machine combined with gantry machine tool uses the most advanced fiber laser in the world as the laser light source, and is specially designed for high-reflection materials (aluminum). Good rigidity and stability; driven by precision guide rails, equipped with high-response servo motors, high precision and fast speed; mainly for fast precision welding. Fiber lasers have high beam quality, high conversion rate, maintenance-free, stable and reliable. It has a series of advantages such as low operating cost and small size, and is the first choice for lithium-ion laser welding processing.
Features
The photoelectric conversion efficiency can reach 40%, and the power consumption is low.
Continuous 6000W pure fiber laser, which can penetrate 3mm materials for direct welding
Precise servo system control to ensure welding accuracy.
Technical Parameters
| Power supply(V) | 380±10%V AC 50/60Hz |
| Power capacity（kW） | 10 |
| Surrounding environment | Level ground, no vibration and shock |
| Gas requirement | Compressed air: pressure ≥ 0.6Mpa, gas consumption: 30 L/min. |
| Nitrogen: ≥ 0.4Mpa, gas consumption 15 L/min (No necessary, according to the process can be used) | |
| Ground load-bearing requirements | ≥400kg/㎡ |
| Working environment requirements | Working temperature: 10℃-40℃ |
| Relative humidity : 30%-70% | |
| Pass Rate | ≥99%(Excluding defective incoming materials) |
| Noise | ≤75db (measured at 1m from the machine) |
| Weld thickness | 6mm(adjustable) |
| Weld travel | 700*600*400 |
| Weld speed | 30mm/s(adjustable) |
| Laser type | continuous |
| Laser power | 6kw(adjustable) |
| Laser working medium | optical fiber |
| Laser life | ≥ 5 years |
| Average output power | 6000W |
| Center wavelength | 1080±10nm |
| Operating Module | Continuous / Modulation |
| Maximum modulation frequency | 5KHz |
| Output power stability | ＜1% |
| Red light | Yes |
| Output connector | QBH |
| Output fiber length | 10M |
| Input power supply | 380V |
| Control mode | RS232/ ADRS232/AD |
| Power adjustable range | (10-100)% |
| Power consumption | 6000W（Subject to actual） |
| Weight | ＜100KG |
| Cooling method | Water cooling |
| Operating temperature ℃ | 10℃-40℃ |
Product Display
