This machine adopts gear transmission to realize the roll pressing.
Brand :
ACEYItem No. :
ACEY-MRP100WCustomization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.Product Description
It is mainly suitable for manual rolling of battery materials in the laboratory. It is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials . This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use.
Features
Technical Parameters
Roller size: | diameter Φ96mmX100mm | ||||||
Roller cylindricity | ≤±2um. | ||||||
Roller hardness: | HRC62 | ||||||
Roller finish: | above 0.4 | ||||||
Rolling thickness: | 0~2mm, the gap can be adjusted | ||||||
Roll placement: | horizontal placement | ||||||
Operation method: | manual | ||||||
Feeding speed: | 0~40mm/s, depends on the speed of hand crank | ||||||
Dimensions: | L405mm*W305mm*H355mm | ||||||
Equipment weight: | 50KG |

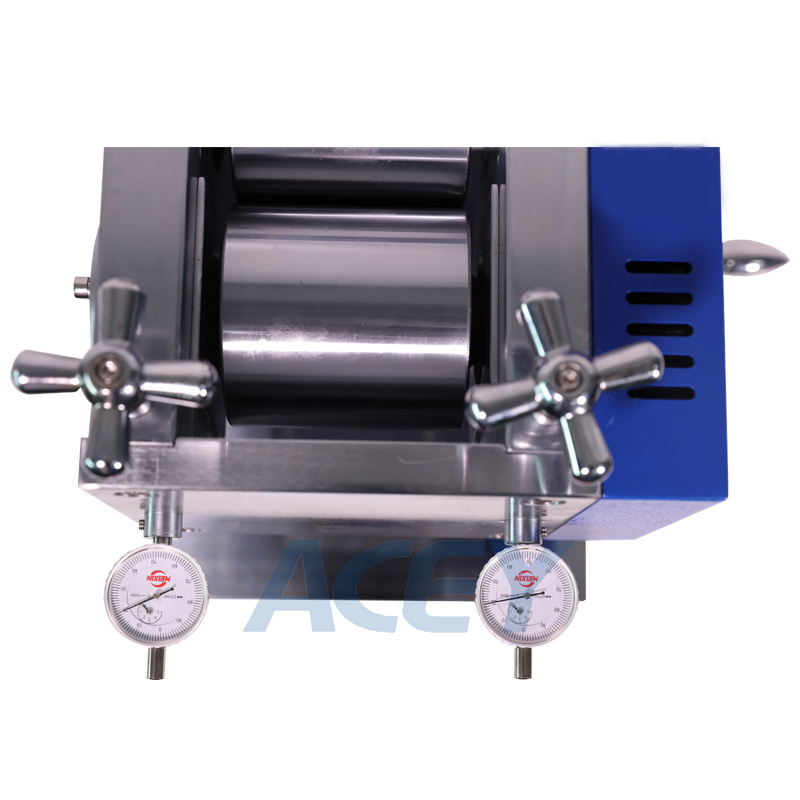

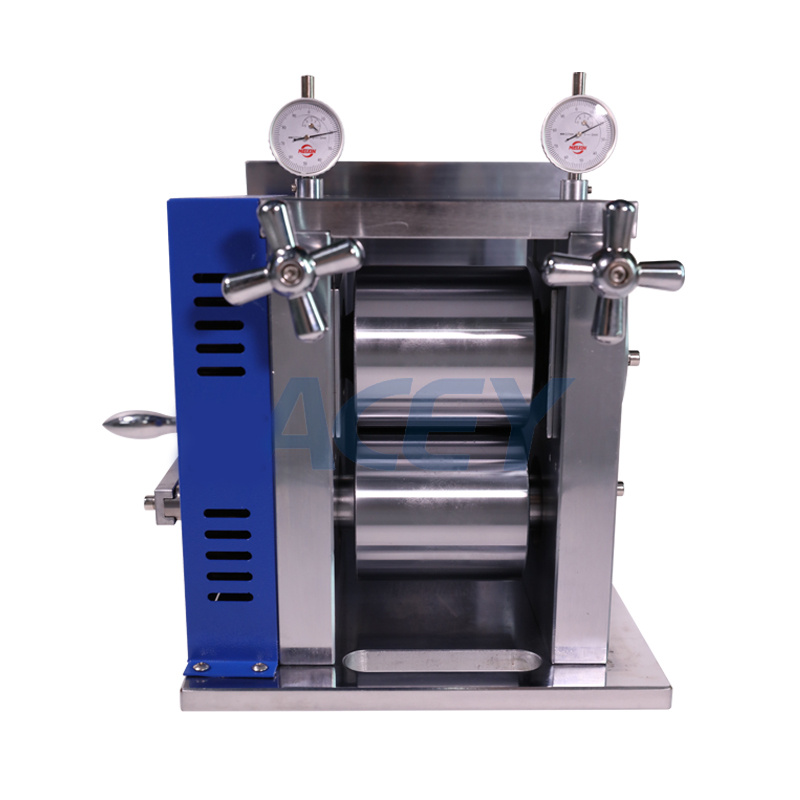

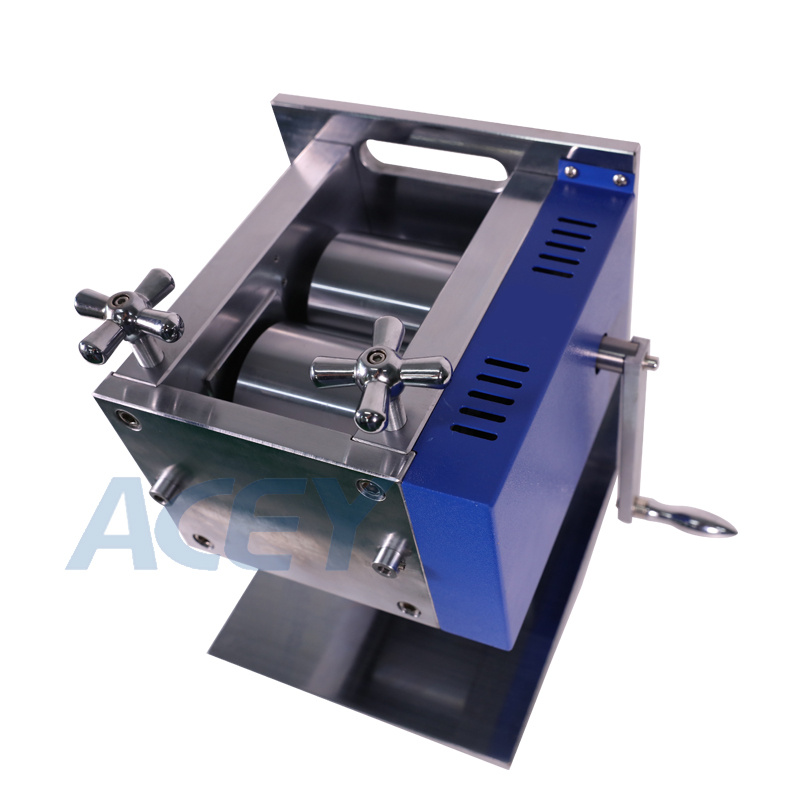

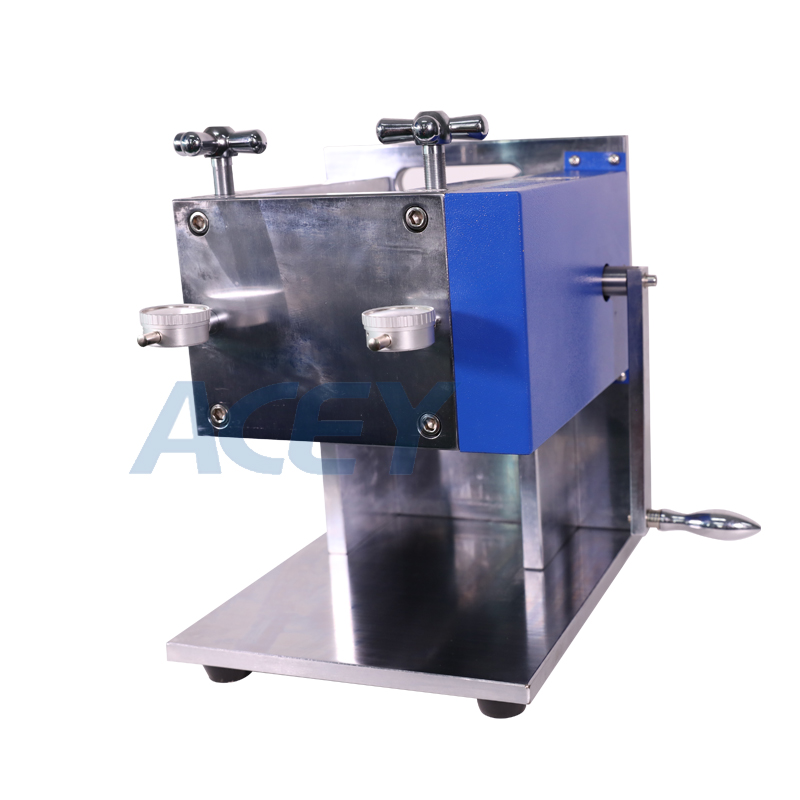

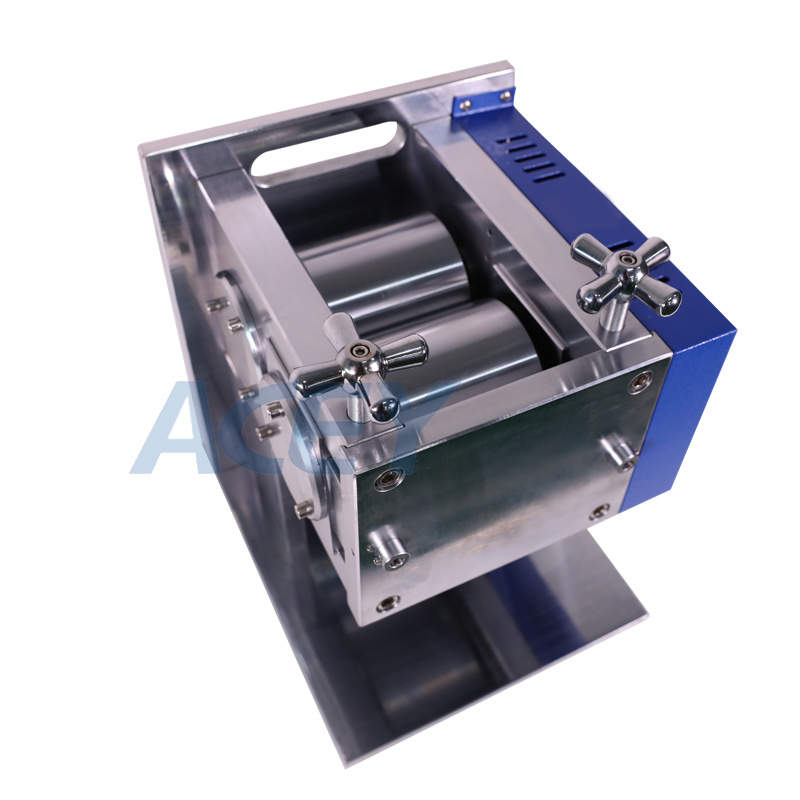

Product Display
