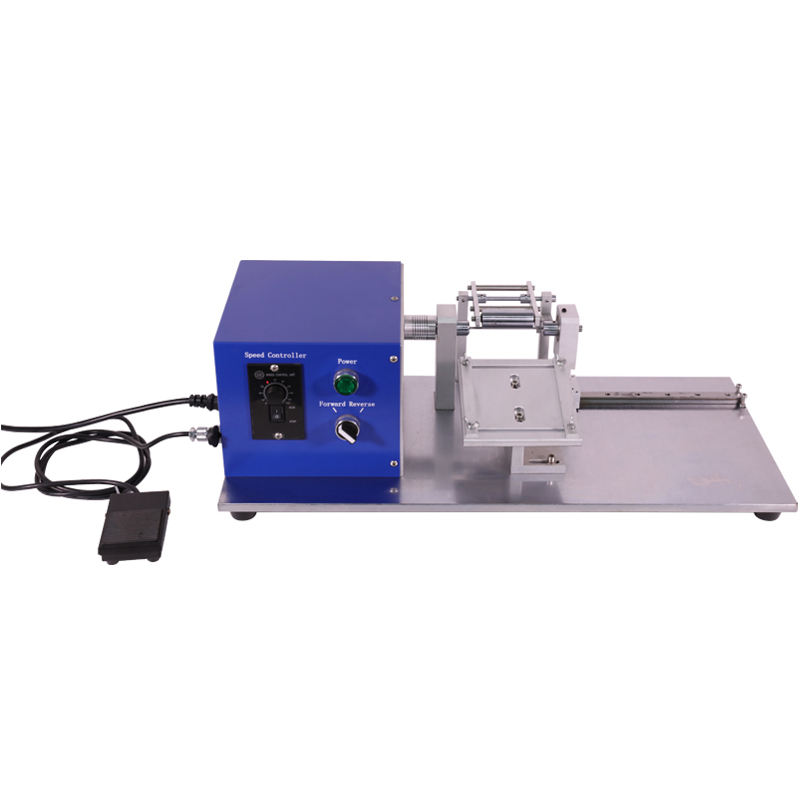

The battery winding machine for cylindrical batteries is a device specially used to manufacture cylindrical lithium-ion batteries for laboratory.
Brand :
ACEYItem No. :
ACEY-WM-CCustomization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description

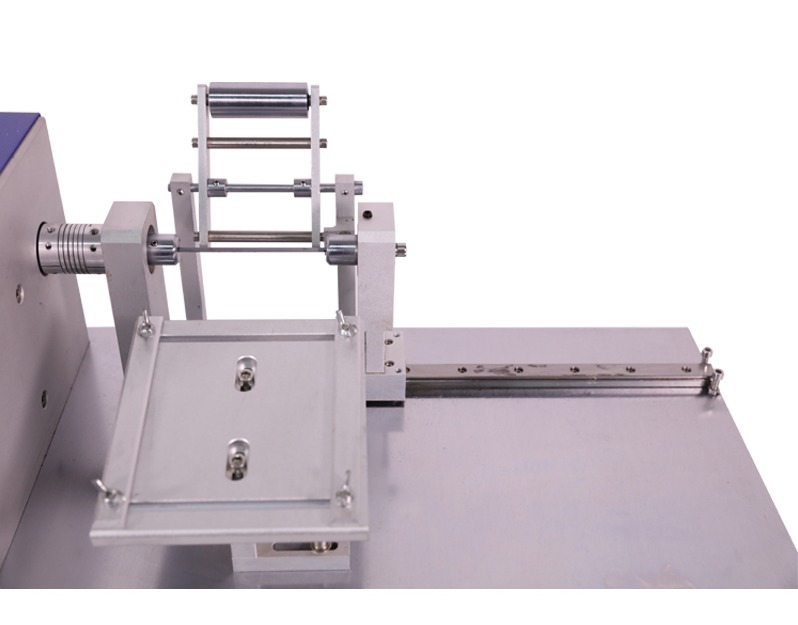

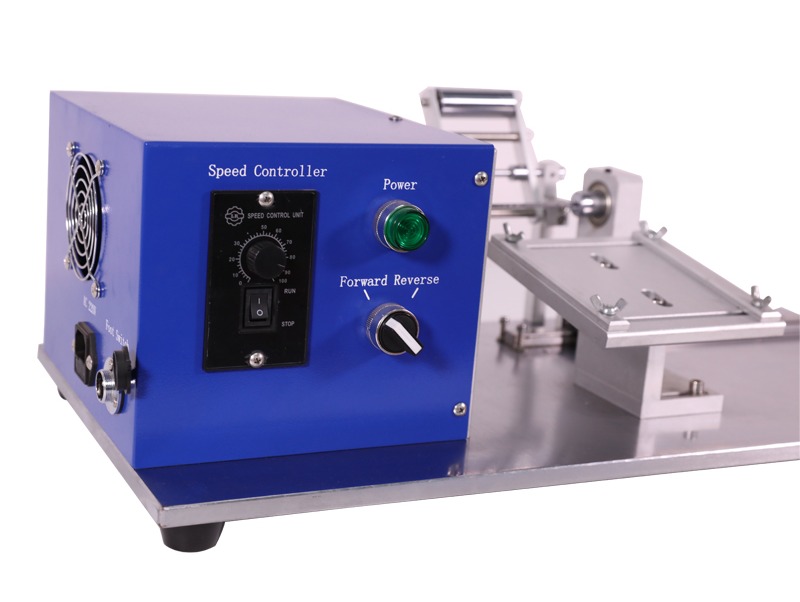

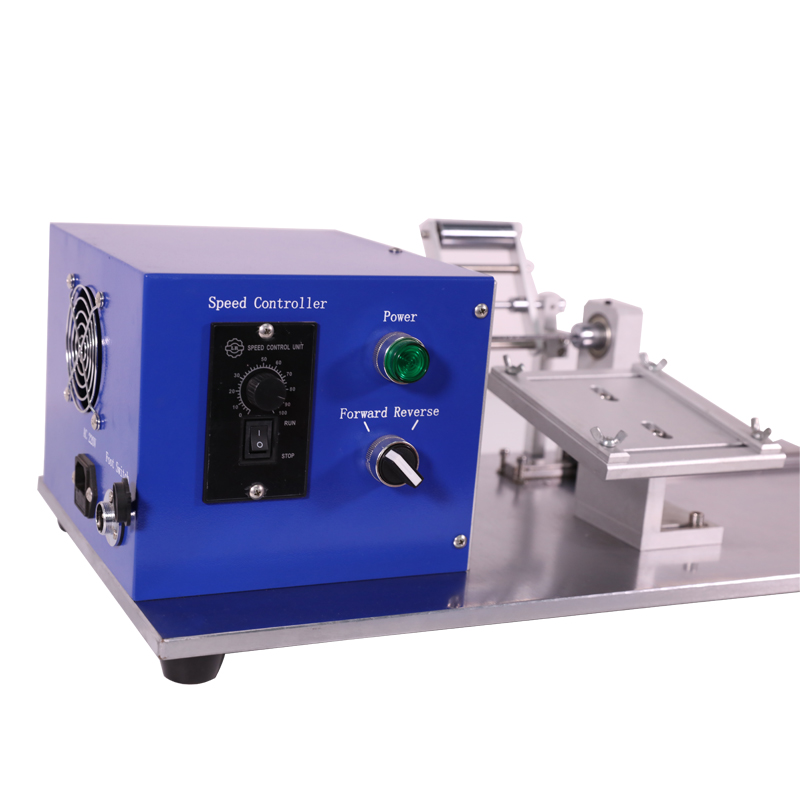

Battery winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors. The positive and negative sheets and the separator are wound into batteries. The machine is small in size, easy to adjust, operate and maintain; the winding needle yaw degree is small; the up and down, left and right, and front and rear positions of the guide plate are adjustable; the foot switch controls the forward and reverse rotation. It has the characteristics of easy operation, safe and reliable, beautiful appearance, etc
Features
Parameter
| Needle diameter: | Ф3mm, Ф4mm, Ф5mm (can be customized according to customer requirements) | ||||||
| The length of the positive and negative plates: | 90mm~650 mm | ||||||
| The width of the positive and negative plates: | 28mm~58mm | ||||||
| Diaphragm width: | 30mm~60mm | ||||||
| Tape width: | 8mm~16mm | ||||||
| Winding accuracy: | ≤±0.3mm (alignment error between diaphragm and positive and negative plates) | ||||||
| Speed: | 5~7 Pcs/min | ||||||
| Air source: | 0.5~0.7 Mpa | ||||||
| Power source: | AC220V 50HZ power: 1.0KW | ||||||
| Equipment size: | 1600mmx1300mmx1500mm | ||||||
| Weight: | about 600KG | ||||||
Product Display
