Lithium battery comprehensive test equipment is a fast and accurate device to test the performance of finished battery. It can make a quantitative and accurate measurement of some basic parameters of the battery.
Brand :
ACEYItem No. :
ACEY-BIT100-30A120ACustomization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
ACEY-BIT100-30A120A can be used to test Battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharging current, continuous discharging voltage, charging overcurrent protection current, discharging overcurrent protection current, short circuit protection time, overcurrent delay time, post-test voltage.
The device uses infrared scan barcode input (SN) to start the test or detects voltage to start the test automatically.
Function
Technical Parameters
| Voltage range | 0-100V |
| Internal resistance | 0-2000mΩ |
| Charge current | 0-30A |
| Discharge current | 0-120A |
| Continued discharge current(highest voltage) | 200A |
| Overcurrent delay time | 0-30S |
| short circuit time | 0-2000μS |
| NTC range | 0-100K 0.001K |
| R1 range | 0-100K 0.001K |
| Power supply | AC 200V-240V |
| Maximum working power | 3000W（maximum current） |

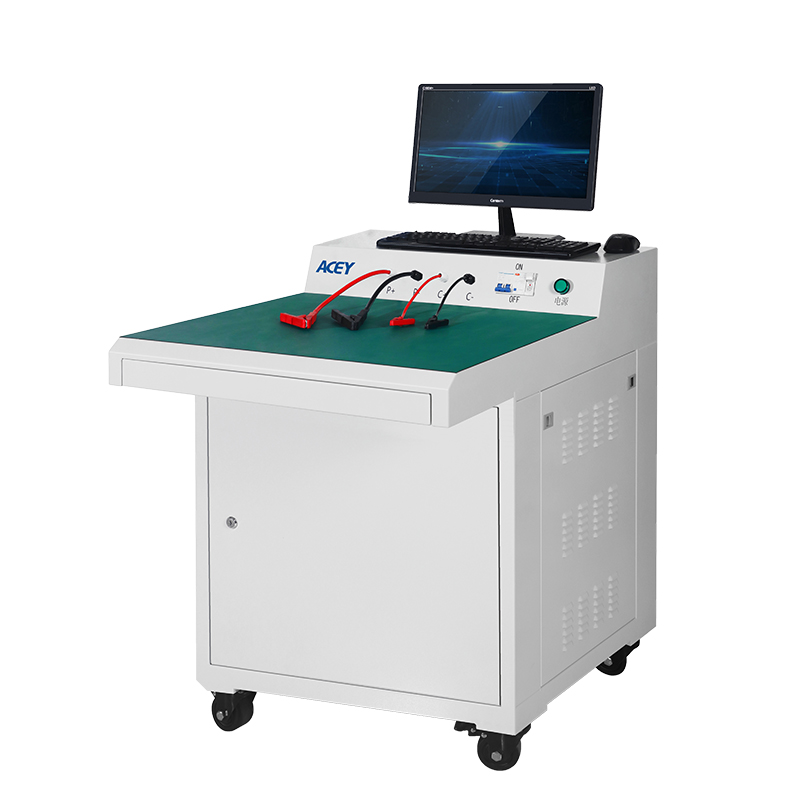

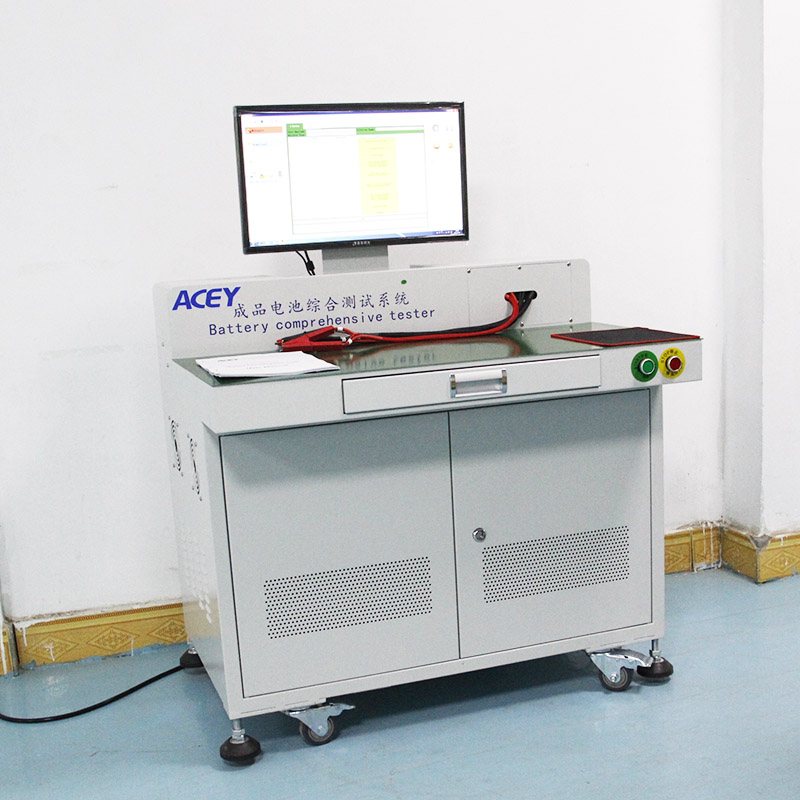

Product Display
