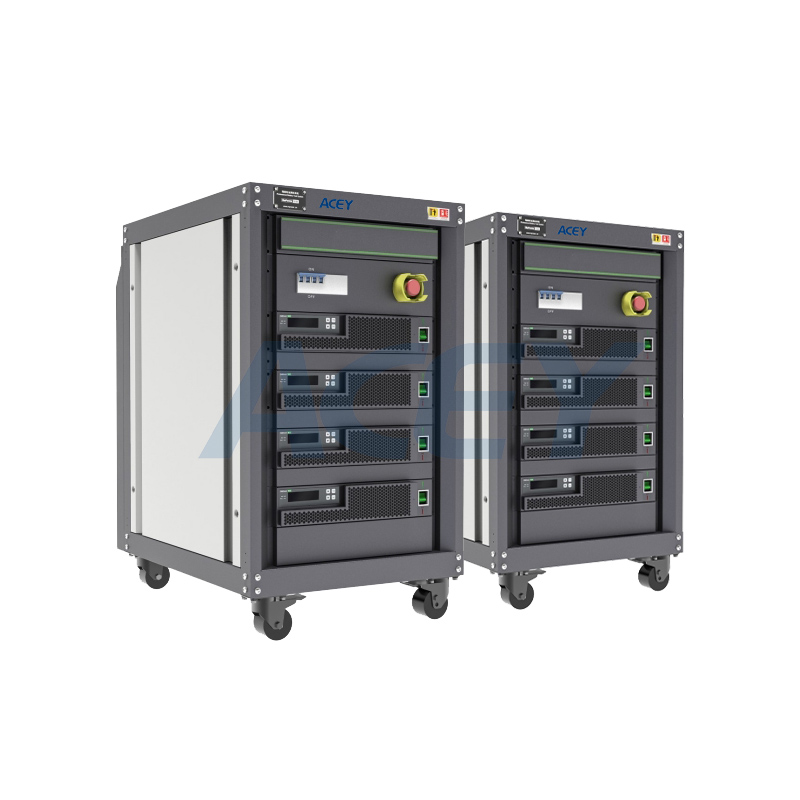

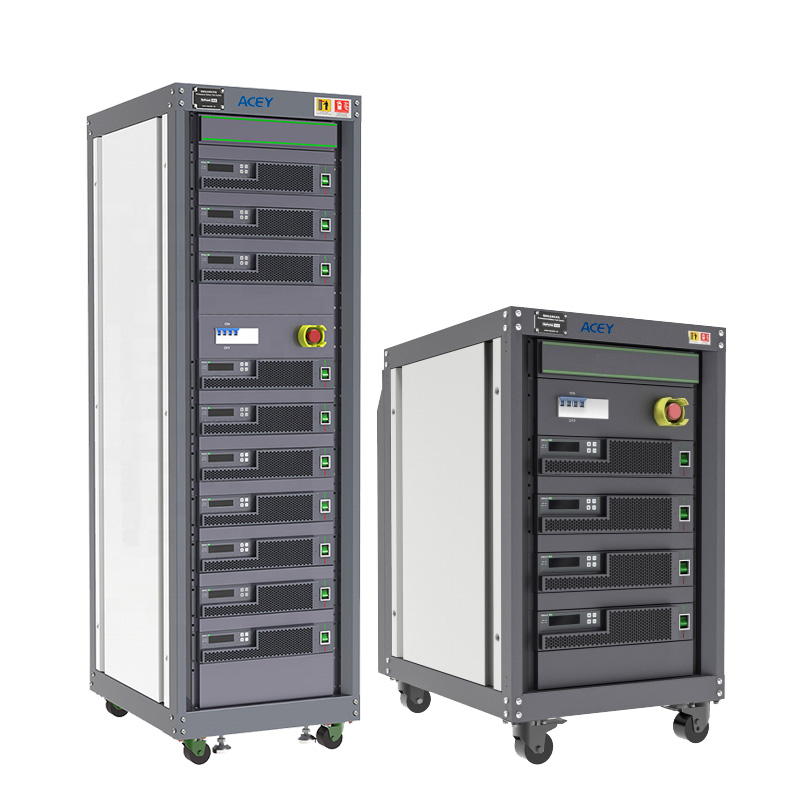

6V 200A Battery Pack Charge Discharge Test System

ACEY-HRCDS-6V200A-8CH is mainly used for circle life testing and quality control of li-ion battery, lead-acid battery, Ni-Cd battery, NiMH battery and so on in production line or in lab.

  • Brand :

    ACEY
  • Item No. :

    ACEY-HRCDS-6V200A-8CH
  • Customization :

    OEM&ODM Available
  • Order(MOQ) :

    1 Set
  • Compliance :

    CE Certified
  • Payment :

    T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, Etc
  • Warranty :

    One Year Warranty With Lifetime Support
  • Product Origin :

    China
  • Package :

    Internal: Anti-Collision Protectio, External: Plywood Case
  • Shipment :

    By Air, Sea, Express, etc.

6V 200A Battery Pack Charge Discharge Test System

Product Description



ACEY-HRCDS-6V200A-8CH is mainly used for testing the charging and discharging cycle of finished lithium batteries.The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.





Features

  • mainly used for circle life testing and quality control of li-ion battery, lead-acid battery, Ni-Cd battery, NiMH battery and so on in production line or in lab.
  • Support battery circle life testing, capacity testing, charging characteristic testing, discharging characteristic testing, charg retention capability testing, charge and discharge efficiency testing, over charge or over discharge rate affordability testing.

Technical Parameters

Main channels 2CH/ module
Channel working mode Completely independent.
Main channel working mode Charge: CC, CV, CCCV, no voltage or current impact when CC transfer to CV.
Discharge: CD, CP, CR, DCCV.
Still, Pulse test, Working Condition test, DCIR test.
Main channel test cutoff condition Time, total voltage, total current, capacity, -ΔV, Vcell, RSOC, etc.
Main channel Voltage Single channel test range 0V-6V
Min. discharge voltage 0V
Accuracy ±0.05%FS
Resolution 0.1mV
Main channel Current Single channel test range ±200A
Min. output current 200mA
Accuracy 0.05~50AAccuracy±0.05%FS
50~100AAccuracy±0.05%FS
100A~200AAccuracy±0.05%FS
Resolution 1mA
Current start response time 5ms(10%FS~90%FS)
Time Resolution 10mS
Auxiliary temperature (Optional) Range 20℃~100
Accuracy ±1℃(0℃~70℃)
Resolution 0.1
Power Output power Single channel continuous working power 1000W
Stability ±0.1%FS
Communication LAN
Control program Support data protection when power off, continue testing caused of power cutoff or manually stop and revise step parameter online.
Users can set protection condition, include minimum voltage, maximum voltage, minimum current, maximum current, etc.
Users can set auxiliary channel protection condition, including minimum voltage, maximum voltage, maximum temperature, minimum temperature.
Cycle time Max. 9999
Programmable step Max. 9999
Nested loop Max. 10 layers
Step time range No limit, support h, min, s
Data record Time≥10ms,Voltage≥0.05%FS,Current≥0.05%FS
Program feature Each step has one or multiple exit
Data display Cycle list Circulation number. Charge/discharge capacity, efficiency, power and average voltage, etc.
Process list Process number, working mode, process time, capacity, power, DIR, medium voltage, cut-off voltage, cut-off current, etc.
Detail list Record number, system time, cumulative time, voltage, current, energy, power, cell temperature, etc.
Data export Data can be exported as EXCEL, TXT or diagram. Provide charge discharge efficiency, charge discharge curve, voltage, capacity, current-time characteristic curves, etc.
Data saving Save as files
Curves type X-coordinate: total time, charge discharge capacity, cycle time, voltage, current, capacity.
Y-coordinate: total voltage, current, capacity, power, cell temperature(Optional), end of charge and discharge capacity, etc.
Software protection Power off data protection, power resume continue testing, OVP, ODP, OCP, UCP, OTP, capacity protection, abnormal voltage trend protection, abnormal current trend protection, abnormal current fluctuation protection, abnormal voltage fluctuation protection, abnormal charging voltage increase rate protection, abnormal discharge current decrease rate protection.
Hardware protection Power off, open circuit and short circuit protection. Reverse or wrong connection protection, OCP, OVP, OTP, fixture contact abnormal protection.
Warning function Switch off automatically under emergency, shutdown when power off, load connect and disconnect automatically.
Barcode scan Support barcode start and binding test data, classify batteries rapidly and accurately. Support detailed battery database management functions, connect battery information with testing data base, which is easy for management of data base system.
Sampling terminals Four-polar sampling. Copper nose or other fixture.
Energy consumption Discharge power feedback to grid
Cooling method Forced Fan-cooled
Noise Less than 70dB
IP grade IP20
Repair Modularized structure. Can be replaced or repair with spare parts.
Software update Provide regular software upgrade services until the hardware is incompatible.



Product Display
