ACEY-SVS200 secondary vacuum final sealing machine is mainly used for incidental piercing and secondary vacuum final sealing of pouch cell.
Brand :
ACEYItem No. :
ACEY-SVS200Customization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
ACEY-SVS200 secondary vacuum final sealing machine is mainly used for incidental piercing and secondary vacuum final sealing of pouch cell. It is not recommended to use secondary vacuum final sealing machine in a glove box if it is not under special conditions , and can achieve many functions such as vacuuming, piercing and draining, heating and sealing. The vacuum degree of the working chamber of the equipment is good, the sealing effect is high, and the finished battery is flat.
Features
Parameter
| Vacuum degree | ≤ -96Kpa (the buyer shall provide a vacuum pump) | ||||||
| Head temperature: | room temperature～250℃, temperature adjustable; | ||||||
| Temperature control accuracy: | ±1.5℃; | ||||||
| Heat sealing pressure: | 0～7Kg/cm 2 adjustable; | ||||||
| Heat sealing time: | 0～99 seconds adjustable; | ||||||
| Edge banding width: | 5±0.4mm (according to customer requirements); | ||||||
| Edge sealing size: | 200mm; | ||||||
| The range of the battery | 200 long and 120mm wide | ||||||
| Seal thickness range: | 60 ~ 300um | ||||||
| Seal thickness accuracy (mm): | package thickness difference between any two points <15um | ||||||
| Gas consumption: | about 0.2L compressed gas/each time. | ||||||
| Pneumatic working speed: | ≥180 times/h | ||||||
| Power: | Using 300w heating tube, the power consumption when heating is about 0.6KW. | ||||||
| Compressed air source: | 0.5～0.7Mpa; | ||||||
| Dimensions: | Working part: L510mm*W510mm*H710mm; | ||||||
| Power supply: | 220V/50Hz; | ||||||
| Weight: | about 70KG | ||||||

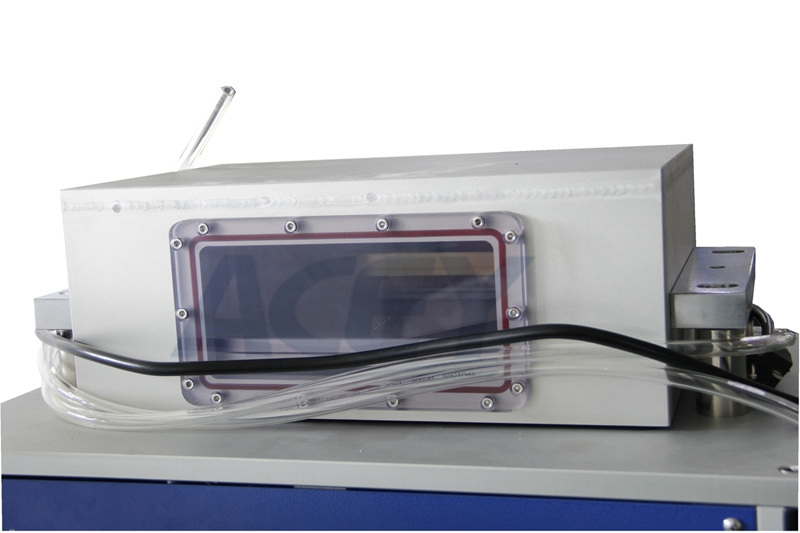

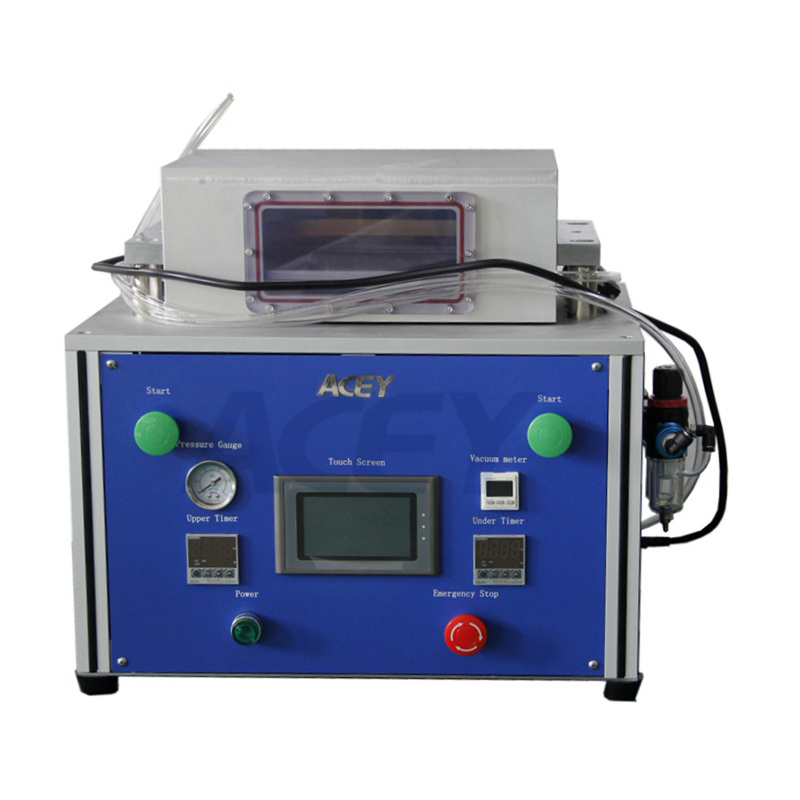

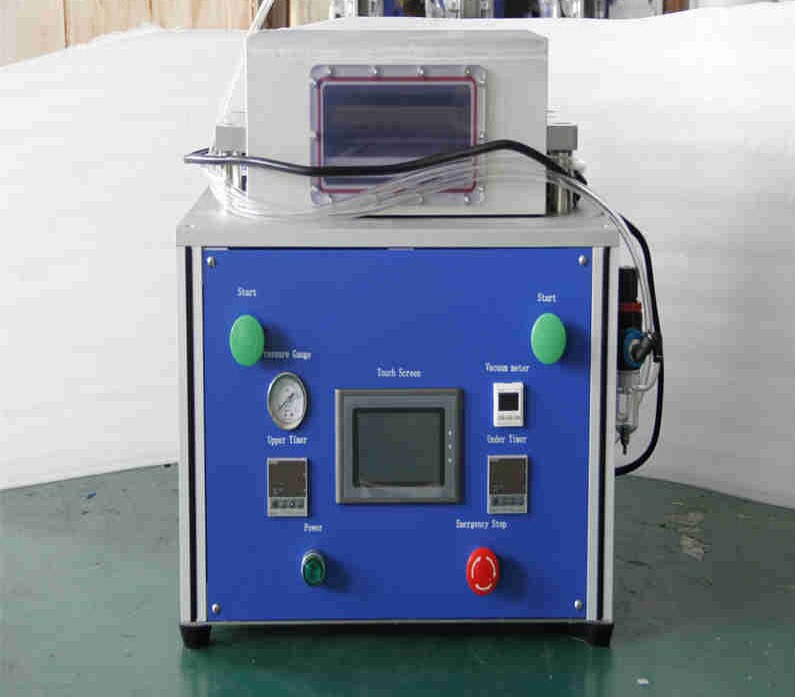

Product Display
