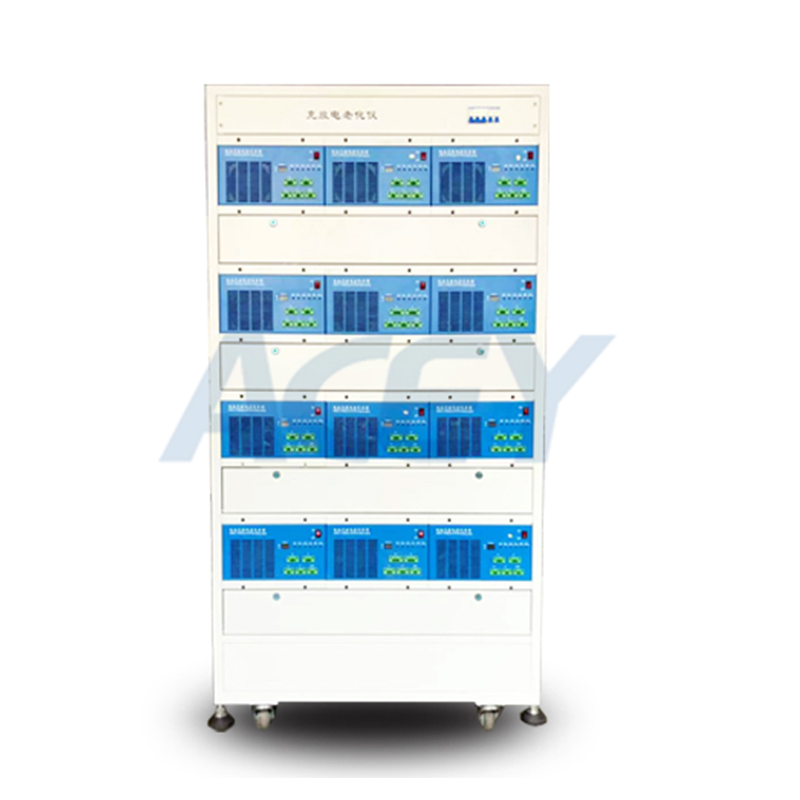

Li Ion Battery Pack Testing Equipment is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. Battery Pack Testing Machine has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.
Brand :
ACEYItem No. :
ACEY-BT7010-12Customization :
OEM&ODM AvailableOrder(MOQ) :
1 SetCompliance :
CE CertifiedPayment :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, EtcWarranty :
One Year Warranty With Lifetime SupportProduct Origin :
ChinaPackage :
Internal: Anti-Collision Protectio, External: Plywood CaseShipment :
By Air, Sea, Express, etc.
Product Description
ACEY-BT7010-12 is applied to the integrated charge discharge cycle test system of low string lithium battery pack cycle charge and discharge, battery pack function test and charge discharge data monitoring. It can be used for 18650, 21700, 26650, 32650, 32700 etc lithium battery pack charge and discharge testing and aging after assembling.The test items includes: battery charging protection voltage, discharge protection voltage, capacity, etc. It has charging, discharging, testing, and circulating 4 test steps. By editing the steps of the plan, the battery can be tested according to the set process.
Battery pack life cycle tester system mainly includes PC software, USB hub, router, aging instrument. The core lies in the aging instrument, the main control chip of the aging instrument is 32-bit ARM chip, which is much faster than the traditional microcontroller in execution and has higher accuracy in measuring voltage and current. The device has four test steps: charging, discharging, shelving, and cycling. By editing the corresponding steps, the battery can be tested in accordance with the set process.
System Features
Parameters
| Charging function | With constant current and constant voltage charging function | ||||||
| discharge function | With constant current and current limiting discharge function | ||||||
| Charge and discharge interface | Fully meet the requirements of charging and discharging the same port and separate charging and discharging of the battery pack, that is, 2 wires (P+ P-) and 3 wires (P+ P- C-) | ||||||
| Equipped with a usb interface | It is used for scanning gun to collect the ID number of the battery pack, which is convenient for data query after battery aging | ||||||
| Security protection | Anti-reverse protection function | ||||||
| Voltage upper and lower limit setting protection | |||||||
| Safe discharge current protection (maximum current 10A) | |||||||
| Charging | Charging voltage 0-70V, continuously adjustable, accuracy ±1mV(high precision dedicated) | ||||||
| requirements | Charging current 0-5000mA, continuously adjustable, accuracy ±1mA (high precision dedicated) | ||||||
| Discharge | Discharge voltage 0-70V, accuracy ±1mV (high precision dedicated) | ||||||
| requirements | Discharge current 0-10A, accuracy ±1mA (high precision dedicated) | ||||||
| Discharge capacity error 1‰ (high precision dedicated) | |||||||

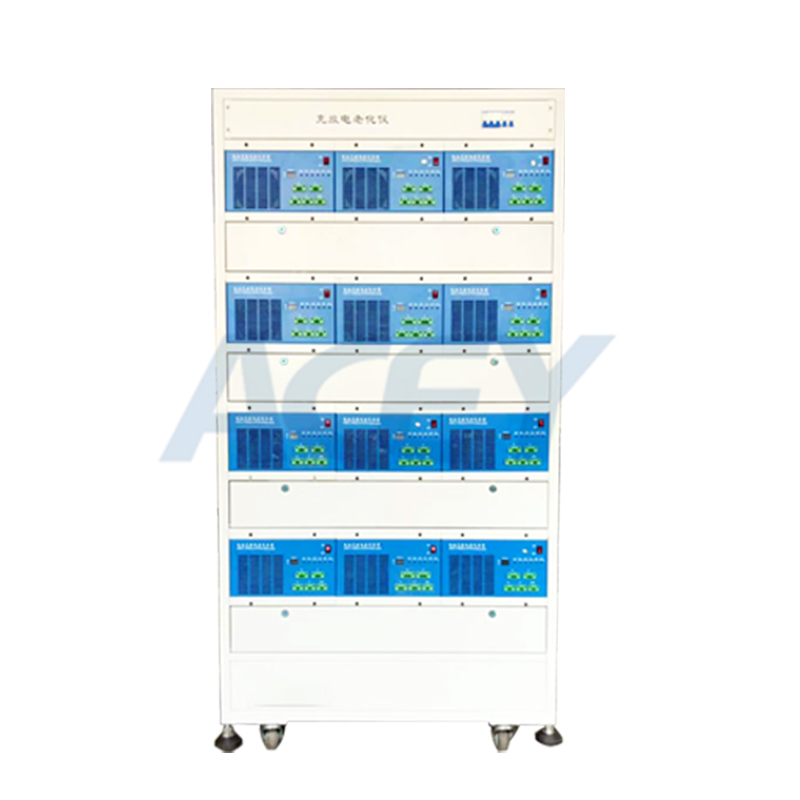

Product Display
